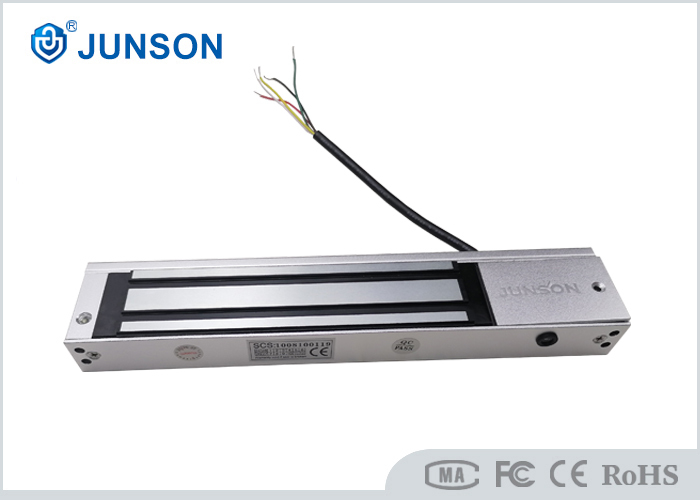

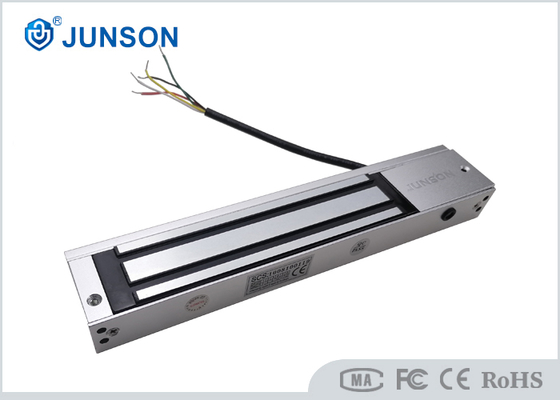

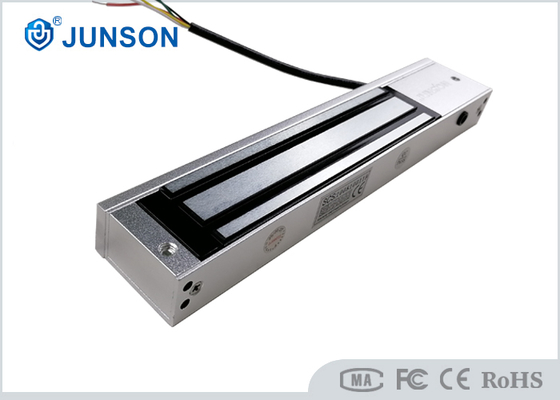

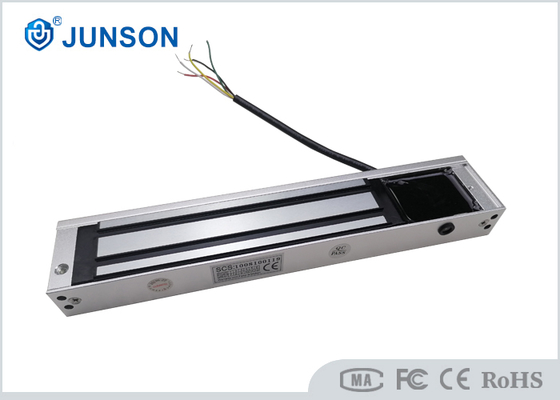

12-24V Waterproof Single Door Magnetic Lock for 280kg / 600Lbs IP67
Λεπτομέρειες:
| Τόπος καταγωγής: | Κίνα |
| Μάρκα: | JUNSON |
| Πιστοποίηση: | CE, ROHS, FCC, MA |
| Αριθμό μοντέλου: | JS-280S-WM |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 10 κομμάτια |
|---|---|
| Τιμή: | Διαπραγματεύσιμος |
| Συσκευασία λεπτομέρειες: | Συσκευασμένο στο χαρτοκιβώτιο |
| Χρόνος παράδοσης: | 1-7 εργάσιμες ημέρες μόλις λάβει η πληρωμή |
| Όροι πληρωμής: | T/T, PayPal ή Western Union εκ των προτέρων |
| Δυνατότητα προσφοράς: | 30.000pcs το μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Μάρκα: | Junson | Μέγεθος κλειδαριάς: | 250Lx49.5Wx26.5H ((mm) |
|---|---|---|---|
| Armature πιάτο: | 180Lx38Wx13H ((mm) | Οι οδηγήσεις δείχνουν: | Πράσινο για κλειδαριά, κόκκινο για άνοιγμα |
| Αισθητήρας κατάστασης κλειδώματος: | ΟΧΙ, NC, Com | Ποσοστό IP αδιάβροχο: | IP67 |
| Θερμοκρασία επιφάνειας: | ≤+20 | Θερμοκρασία: | -20~+55°C |
Περιγραφή προϊόντων
JUNSON 12-24V wide voltage, IP67 full sealed waterproof, LED indication, Lock stutas sensor feedback
Waterproof Single Door Magnetic Lock
Specification:
Lock Size: 250Lx49.5Wx26.5H(mm),
Armature plate: 180Lx38Wx13H(mm)
Holding Force: 280kg(600Lbs)
Voltage: 12 ~24VDC, auto adjustment
Materials: Fine copper coil + aluminum housing
Current Draw: 12V/480mA 24V/240mA
Available Bracket: JS-28U, JS-28L. JS-28ZL
LED indicate: Green to lock, Red to open
Lock status sensor: NO, NC, Com
Suitable for: Wooden door, Glass door, Metal door, Fireproof door
Waterproof IP Rate: IP67
Surface Temp: ≤+20
Operating Temp: -20~+55°C
Suitable Humidity: 0~90%(non-condensing)
Finishes for Shell: Anodized aluminum
Finishes for Magnetic: Zinc
Finishes for Armature: Zinc
Weight: 2kg,
Standard Packing: 10PCS
Standard carton dimension:350Lx290Wx160H(mm)
Have CE, ROHS,FCC, MA certification
The Electromagnetic Locks are totally sealed in an epoxy filled Alumnium case for water-resistant and vandal resistant purpose. A threaded conduit fitting ensures weather resistant protection of the wiring therefore it is ideal for indoor and outdoor applications, even in severe weather. We offers up to 600 pounds holding force with 12V -24V DC adapter voltage power input, it is the best choice for electronic security industry and system .
FAQ:
Q: Are you trading company or manufacturer?
A: We are professional manufacturer. And we trade our products with our clients directly.
Q: How many different types of products your company manufactures?
A: Now we have more than 500 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.
Q: Can you do OEM and ODM? (Can you help with the design?)
A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
Q: What’s your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
Q: Do you provide sample ? Is it free?
A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.
